DJI Dock 3

Rise to Any Challenge

Enquire now

DJI Dock 3

Rise to Any Challenge

Enquire now

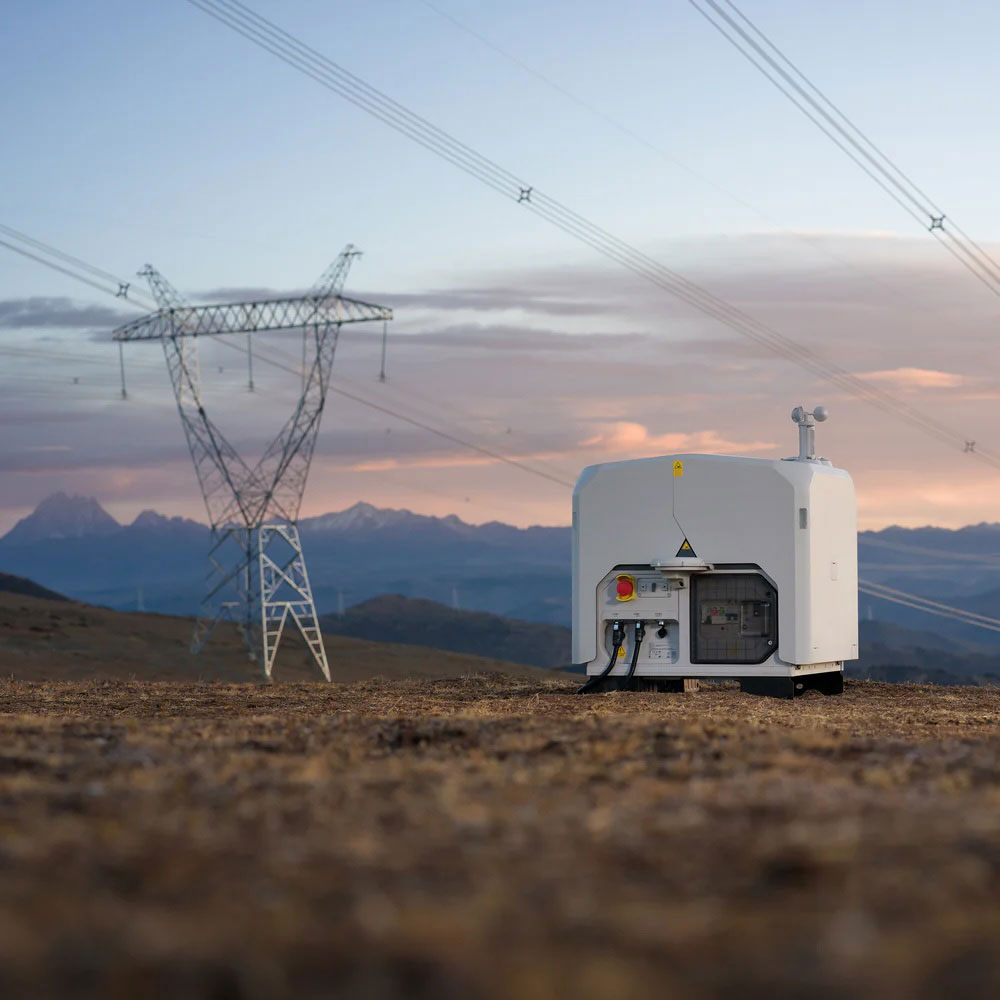

DJI Dock 3 is an automated drone docking station designed for continuous remote operations in demanding environments. Built to work with the DJI Matrice 4D and DJI Matrice 4TD, it supports 24/7 deployment, including vehicle-mounted use, while combining charging, environmental control, connectivity, and remote mission support in one integrated system.

Rise To Any Challenge

Built for demanding 24/7 remote operations with Matrice 4D and 4TD aircraft in a wide range of environments.

Vehicle-Mounted Deployment

For the first time, DJI Dock supports mobile vehicle-mounted deployment for more flexible field operations.

Works With Matrice 4D Series

Designed specifically around Matrice 4D and 4TD aircraft for a more integrated remote-operations workflow.

Supports Standalone Use

Aircraft can also pair with DJI RC Plus 2 Enterprise, adding flexibility beyond fixed dock-only deployment.

Dock-Ready Protection

Integrated charging, sheltering, environmental control, and remote support help keep aircraft ready for persistent operations.

Built For Persistent Coverage

Creates a stronger platform for automated inspection, monitoring, and remote response with less on-site intervention.

Master all environments

Incredible Group works throughout New Zealand – specialising in high quality ground and aerial Photography and Videography, including:

Temperature resistant

DJI Dock 3 is built for extreme conditions, operating seamlessly from -30°C to 50°C with reliable charging and performance. It’s the go-to solution for critical tasks, no matter the temperature.

Wind resistance

The Matrice 4D and 4TD deliver impressive flight performance, handling winds up to 12 m/s with stable takeoff and landing, and up to 32 minutes of flight time.

Rugged and dependable

DJI Dock 3 is built for harsh environments, with an IP56-rated design that protects internal systems for seamless operation. The Matrice 4D and 4TD feature an IP55 rating and low-noise, anti-ice propellers.

Fixed-mount deployment

The D-RTK 3 Relay Fixed Deployment Version enhances video transmission and satellite acquisition with superior anti-interference performance. Installed at elevated locations, it extends transmission up to 25 km, ensuring reliable signals and flexible Dock 3 deployment.

Near high-rise buildings

Mounting the D-RTK 3 Relay on rooftops improves signal quality, enabling Dock 3 deployment near high-rise buildings or substations.

Near communication towers

Installing the D-RTK 3 Relay on a nearby communication tower enhances signal quality, ensuring safe Dock 3 operations even in high-interference environments.

Mobile vehicle-mounted deployment

DJI Dock 3 is DJI’s first dock designed for vehicle-mounted deployment. Tested for vibration resistance, it features horizontal and cloud-based location calibration. The DJI Dock 3 Vehicle-Mounted Gimbal Mount offers a flexible solution for emergency operations and temporary deployments.

Cloud-based calibration

During mobile operations, DJI FlightHub 2 enables remote dock positioning and task assignment via the cloud, improving personnel coordination and scheduling efficiency.

Safe dual-dock deployment

Two DJI Dock 3 units can be deployed on a single vehicle for increased efficiency. A specialised take-over pattern prevents collisions, ensuring safe, alternating operations. Drones can hover and rotate for continuous aerial footage.

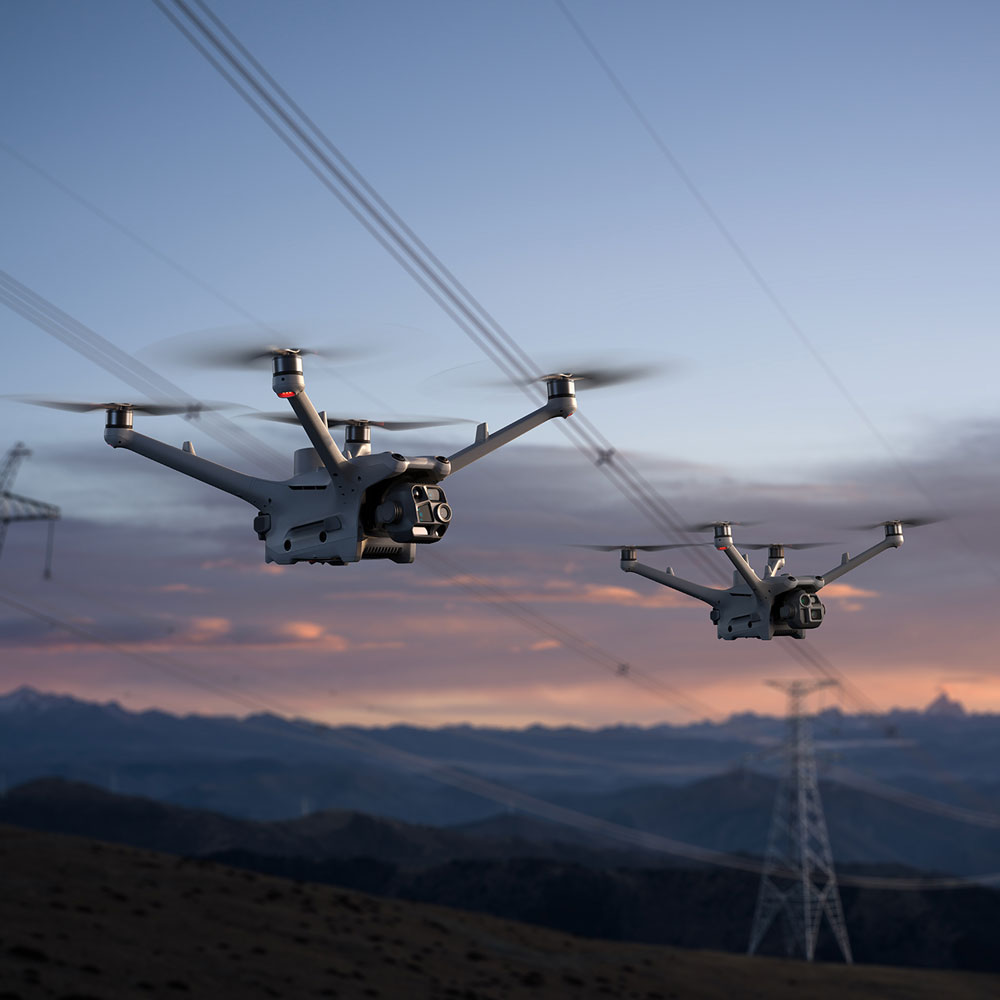

High-performance drones

The DJI Matrice 4D and 4TD are built for DJI Dock 3, offering extended flight time and standalone use with the DJI RC Plus 2 Enterprise. Both feature advanced camera systems, with the Matrice 4D excelling in precision mapping and inspections, while the Matrice 4TD adds thermal imaging and NIR lighting for emergency response and public safety.

Improved flight time

When fully charged, the Matrice 4D/4TD offers up to 47 minutes of flight time at 15 m/s—a 37% increase in operation time. At a 10 km radius, they provide 18 minutes of operation.

Obstacle sensing for safe operation

The Obstacle Sensing Module for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s. It enhances positioning in low light and ensures safe operation in complex power networks and substations.
Disclaimer

All above specs are subject to change by the original manufacturer. Please always consult the actual product’s page on the original manufacturer’s website for up to date information and data notes
