DJI Matrice 30 (2 x Battery and Charging Station)

The M30 is a lightweight & portable all in one drone that comes with a 12MP Wide Camera, 48MP Zoom Camera and a Laser Rangefinder.

Category:

Description

Through Ferntech you get FREE Care Enterprise Basic Cover with your M30

Features

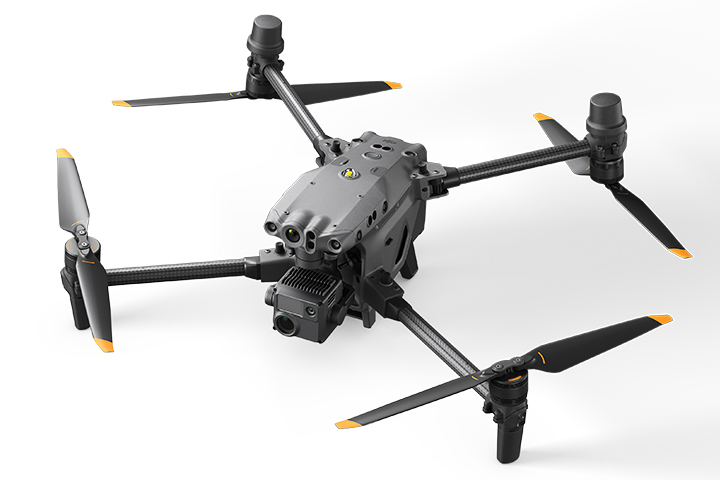

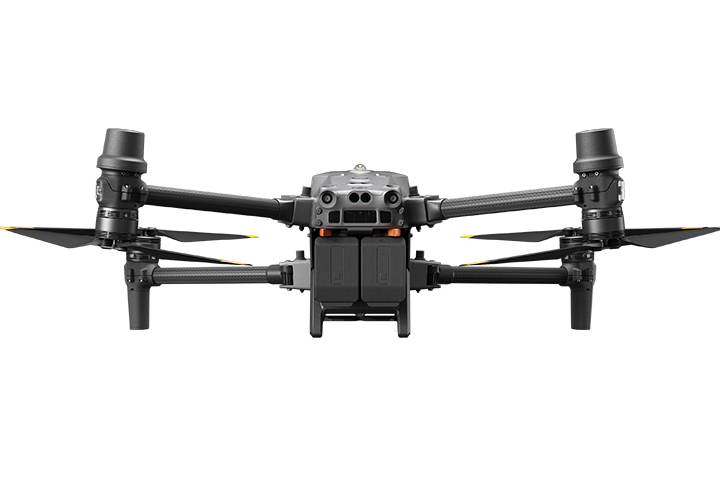

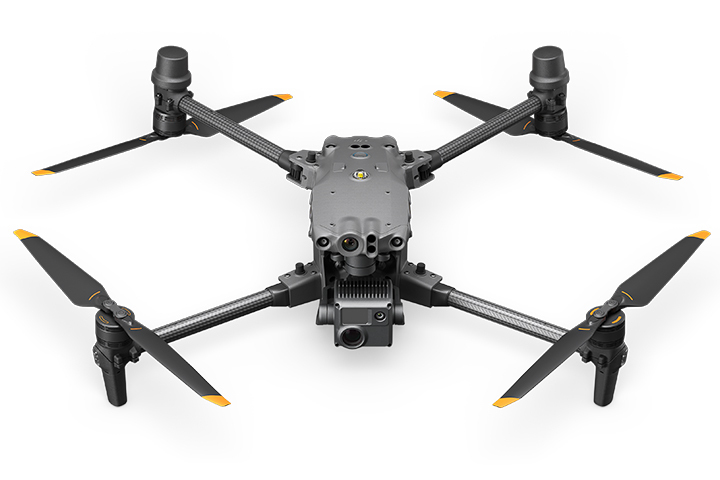

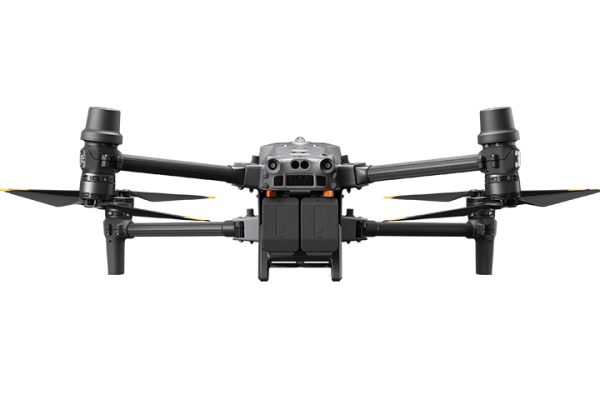

The DJI Matrice 30 is an all new all in one solution that combines all of DJI’s latest transformational technologies into one portable, lightweight drone that is capable of next level flights. The M30 drone has new integrated high performance sensors with a wide, zoom camera along with an laser range finder.





  • 41 Minute maximum flight time.
  • 15 m/s maximum wind resistance & 23 m/s maximum speed.
  • AI Intelligence for easier operations including smart pin and track & Waypoints 2.0
  • 7000m service ceiling to allow for high altitude operations
  • IP55 ingress protection.

Environmental Adaptability

With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.



Safe & Reliable.

The DJI M30 has dual-vision and ToF sensors on all six sides of the aircraft, keeping it and your mission safe. There is also a built in ADS-B receiver that provides timely warnings of any incoming aircraft.





Enhanced Transmission

Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.
Bolster your connection with DJI Cellular Module, an optional 4G dongle4 that supports stable video transmission in complex, or remote work environments.



Capture Everything

The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.





Pro Flight

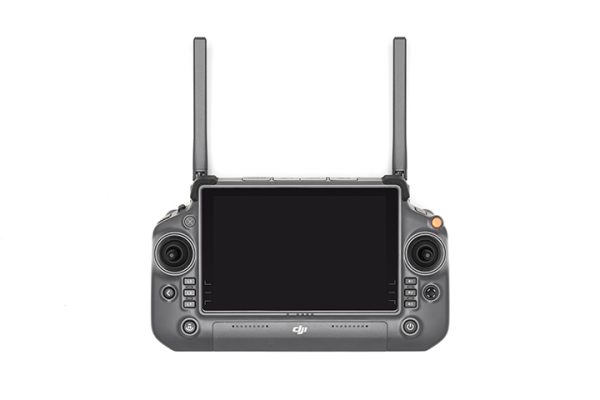

The 7-inch widescreen DJI RC Plus with dual control mode is tailor-made for Enterprise users.



DJI Pilot 2

Drone and payload controls can be easily accessed with one tap. Clear presentation of flight details and navigational information improves user experience and flight efficiency.

Pilot 2 works seamlessly with the DJI RC Plus. Screenside and customizable buttons are all within reach and enable quick operations, such as adjusting camera views and dropping PinPoints.



Ground to Cloud

FlightHub 2 offers a 2.5D Base Map for quick terrain awareness, One-Tap Panorama Sync for rapid site overviews, and Cloud Mapping for fast mapping in RGB or infrared.





Advanced Intelligence

Flight routes and missions planned in FlightHub 2 can be easily synchronized with Pilot 2. Operation data can be automatically uploaded to FlightHub 2 Media Files for unified management and analysis.



DJI Dock (Sold Separately)

The DJI Dock (M30 Series Dock Version7) has flagship-level performance with a maximum operation range of 7 km, IP55 weather resistance, and resilience in temperatures ranging from -35℃ to 50℃.

Product Specifications

Aircraft

Dimensions (unfolded, excl. propellers): 470×585×215 mm (L×W×H)

Dimensions (folded): 365×215×195 mm (L×W×H)

Diagonal Wheelbase: 668 mm

Weight (incl. two batteries): 3770 ± 10 g

Max Takeoff Weight: 4000 g

Operation Frequency[1]: 2.4000-2.4835 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP):

2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)

5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)

Hovering Accuracy (windless or breezy):

Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)

Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)

RTK Positioning Accuracy (fixed RTK enabled):

1 cm+1 ppm (horizontal)

1.5 cm+1 ppm (vertical)

Max Angular Velocity: Pitch: 150°/sec.; Yaw: 100°/sec.

Max Tilt Angle: 35° (N-mode and Forward Vision System enabled: 25°)

Max Ascent/Descent Speed: 6 m/s, 5 m/s

Max Tilt Descent Speed: 7 m/s

Max Horizontal Speed: 23 m/s

Max Service Ceiling Above Sea Level (without other payload):

5,000 m (with 1671 propellers)

7,000 m (with 1676 propellers)

Max Wind Resistance: 15 m/s, 12 m/s during taking off and landing

Max Hover Time [2]: 36 min

Max Flight Time[2]: 41 min

Motor Model: 3511

Propeller Model: 1671, 1676 High Altitude (not included)

Ingress Protection Rating[3]: IP55

GNSS: GPS+Galileo+BeiDou+GLONASS(GLONASS is supported only when RTK module is enabled)

Operating Temperature: -20° to 50° C (-4° to 122° F)

Gimbal

Angular Vibration Range: ±0.01°

Controllable Range:

Pan: ±90°
Tilt: -120° to +45°

Mechanical Range:

Pan: ±105°
Tilt: -135° to +60°
Roll: ±45°

Zoom Camera

Sensor: 1/2″ CMOS, Effective pixels: 48M

Lens:

Focal length: 21-75 mm (equivalent: 113-405 mm)
Aperture: f/2.8-f/4.2
Focus: 5 m to ∞

Wide Camera

Sensor: 1/2″ CMOS, Effective pixels: 12M

Lens:

DFOV: 84°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞

Thermal Camera (Only available on Matrice 30T)

Thermal Imager: Uncooled VOx Microbolometer

Lens:

DFOV: 64°
Focal length: 9.1 mm (equivalent: 40 mm)
Aperture: f/1.0
Focus: 5 m to ∞

Infrared Temperature Measurement Accuracy[4]: ±2°C or ±2% (using the larger value)

FPV Camera

Resolution: 1920×1080

DFOV: 161°

Frame Rate: 30 fps

Laser Module

Wavelength: 905 nm

Max Laser Power: 3.5 mW

Single Pulse Width: 6 ns

Measurement Accuracy: ± (0.2 m + D×0.15%)D is the distance to a vertical surface

Measuring Range: 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)

Vision Systems

Obstacle Sensing Range:

Forward: 0.6-38 m
Upward/Downward/Backward/Sideward: 0.5-33 m

FOV: 65° (H), 50° (V)

Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)

Infared Sensing Systems

Obstacle Sensing Range: 0.1 to 10 m

FOV: 30°

Operating Environment: Large, diffuse, and reflective obstacles (reflectivity >10%)

TB30 Intelligent Flight Battery

Capacity: 5880 mAh

Voltage: 26.1 V

Battery Type: LiPo 6S

Energy: 131.6 Wh

Net Weight: Approx. 685 g

Operating Temperature: -20° to 50° C (-4° to 122° F)

Storage Temperature: 20° to 30° C (68° to 86° F)

Charging Temperature: -20° to 40° C (-4° to 104° F)(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)

Chemical System: LiNiMnCoO2

Auxiliary Lights

Effective Illumination Distance: 5 m

Illumination Type: 60 Hz, solid glow

Remote Controller

Screen: 7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

Internal Battery:

Type: Li-ion (6500 mAh @ 7.2 V)
Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
Charge Time: 2 hours
Chemical System: LiNiCoAIO2

External Battery(WB37 Intelligent Battery):

Capacity: 4920 mAh
Voltage: 7.6 V
Battery Type: Li-ion
Energy: 37.39 Wh
Chemical System: LiCoO2

Operating Time[5]: Internal Battery: Approx. 3 hours 18 minInternal Battery + External Battery: Approx. 6 hours

Ingress Protection Rating[3]: IP54

GNSS: GPS+Galileo+BeiDou

Operating Temperature: -20° to 50° C (-4° to 122° F)

O3 Enterprise

Operating Frequency[1]: 2.4000-2.4835 GHz, 5.725-5.850 GHz

Max Transmission Distance (unobstructed, free of interference): 2.4000-2.4835 GHz: 15 km (FCC); 8 km (CE/SRRC/MIC)

Max Transmission Distance (with interference):

Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/ MIC)
Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/ SRRC/MIC)

Transmitter Power (EIRP):

2.4 GHz: <33 dBm (FCC); <20 dBm (CE/ SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Wi-Fi

Protocol: Wi-Fi 6

Operating Frequency[1]: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP):

2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC)
5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC)
5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)

Bluetooth

Protocol: Bluetooth 5.1

Operating Frequency: 2.4000-2.4835 GHz

Transmitter Power (EIRP): <10 dBm

BS30 Intelligent Battery Station

Dimensions: 353×267×148 mm

Net Weight: 3.95 kg

Compatible Battery Type: TB30 Intelligent Flight Battery, WB37 Intelligent Battery

Input: 100-240 VAC, 50/60 Hz

Output:

TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)
WB37 Intelligent Battery: 8.7 V, 6 A

Output Power: 525 W

USB-C port: Max. output power of 65 W

USB-A port: Max. output power of 10 W (5 V, 2 A)

Power Consumption (when not charging battery): < 8 W

Output Power (when warming up battery): Approx. 30 W

Operating Temperature: -20° to 40° C (-4° to 104° F)

Ingress Protection Rating[3]: IP55 (with the cover closed properly)

Charging Time[6]:

Approx. 30 min (charging two TB30 batteries from 20%-90%)
Approx. 50 min (charging two TB30 batteries from 0%-100%)

Protection Features:

Anti-Backflow Protection
Short Circuit Protection
Over Voltage Protection
Over Current Protection
Temperature Protection

Other

Footnotes:

[1] 5.8 and 5.1GHz frequencies are prohibited in some countries. In some countries, the 5.1GHz frequency is only allowed for use indoors.
[2] The maximum flight time and the hover time were tested in a lab environment and is for reference only.
[3] This protection rating is not permanent and may reduce over time after long-term use.
[4] Infrared temperature measurement accuracy was tested in a lab environment and is for reference only.
[5] The maximum operating time was tested in a lab environment and is for reference only.
[6] The charging time was tested in a lab environment at room temperature. The value provided should be used for reference only.

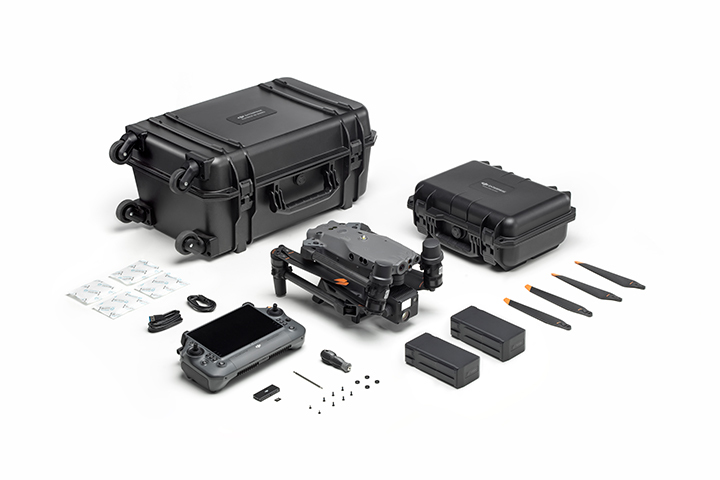

In the box

Aircraft Body x 1
DJI RC Plus Remote Controller x 1
1671 Propeller (CW) x 2
1671 Propeller (CCW) x 2
USB-C Cable x 1
USB-C to USB-C Cable x 1

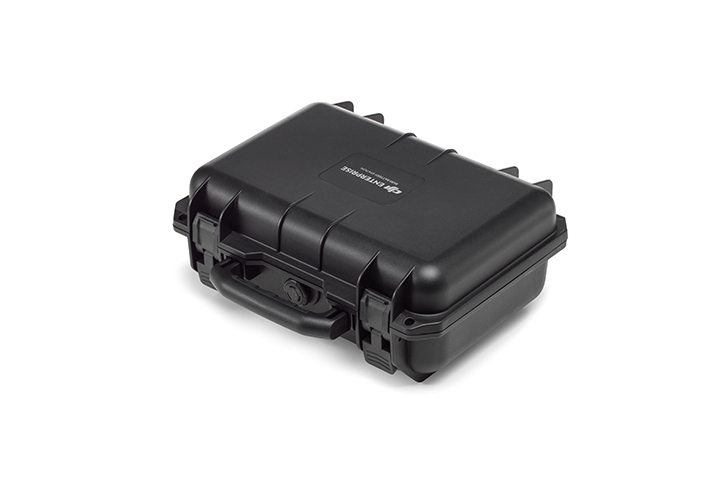

Carrying Case x 1
Screws and Tools x 1
BS30 Battery Station x 1
TB30 Battery x 2
WB37 Battery x 1

Aircraft

What’s the difference between the Matrice 30 and the Matrice 30T?
The Matrice 30 series includes two versions: M30 (its gimbal and camera have three sensors: wide-angle camera, zoom camera, laser range finder) and M30T (its gimbal and camera have four sensors: wide-angle camera, zoom camera, laser range finder, thermal imaging camera).

Which version of the M30 is compatible with the DJI Dock?
The DJI Dock is compatible with the M30 (Dock version) and the M30T (Dock version), but not regular M30 series drones. This is because the M30 (Dock version) has slight differences in its body to be compatible with the DJI Dock. When you purchase the DJI Dock, it includes the M30 (Dock version) or the M30T (Dock version).

Is frame arm lock detection supported?
Supported. M30 series aircraft comes with frame arm lock function. If the arm is not unfolded properly, the app will give a warning to prohibit takeoff.

Battery

How long does it take to fully charge two TB30 Intelligent Flight Batteries?
With a BS30 Intelligent Battery Station, it takes about 50 minutes to fully charge the two TB30 Intelligent Flight Batteries, about 40 minutes to charge up to 90%, and only about 30 minutes to charge up from 20% to 90%.

Can TB30 Intelligent Flight Batteries be used in low temperature environments?
TB30 Intelligent Flight Batteries can work in operating environments with temperatures ranging from -20°C (-4°F) to 50°C (122°F). Battery life will be shortened when used in low temperature environments. Please plan your flight times accordingly. For optimal battery performance, it’s recommended to keep the battery temperature above 18°C (64°F), or heat the battery to 18°C (64°F) with its self-heating function (a takeoff limit will be triggered if the battery temperature is below 10°C (50°F)).

Can I board a plane with a TB30 Intelligent Flight Battery?
TB30 Intelligent Flight Battery’s power level is 131.6 watt hours. Please comply with local airline regulations when planning to fly with batteries.

Why does the battery heat up when stored for a long time?
Long-term storage of a lithium battery at full charge will significantly shorten its battery life. In order to ensure safe storage and extend the battery life, a fully charged battery will activate its auto-discharging function to discharge itself to a level of about 60%. During the auto-discharging process, it will release some heat, which is normal.

Battery Station

Does the BS30 Intelligent Battery Station support auto-discharging?
Not supported.

Remote Controller

Is the M30 series remote controller (RC) compatible with the Matrice 300 RTK?
It will be supported in the future.

Gimbal and Camera

Can the gimbal and camera of the M30 Series be replaced with other payloads?
Gimbal and camera are fixed cannot be replaced.

What photo modes are available on the M30 series aircraft?
Single Shot, High-res Grid Photo, Timed Shot, Panorama, and Smart Low-light Photo

How to use the gimbal lock function? Why does it need to lock the gimbal?
Flip the gimbal up by 90° to lock its tilt.
Lock the tilt to better protect the camera lens and prevent scratches during transportation or storage of the aircraft. The gimbal can be quickly and easily unlocked when arriving at the operation site, greatly reducing preparation time for the operation.

Application

Does the M30 series support SDK function?
Supports Payload SDK and Mobile SDK. The Payload SDK interface on top of M30 series aircraft integrates the functions of Onboard SDK.
Please contact dev@dji.com for further technical support.

Does the M30 series support accurate mapping?
Not supported. TheM30 series is not designed for aerial surveying. Users can plan a flight path and capture photos in the aerial FPV mode of DJI Pilot 2.0 App, but the model’s accuracy is not guaranteed.

Can the M30 series be used with D-RTK 2 Mobile Station?
Yes. Upgrade the firmware of D-RTK 2 Mobile Station to the latest version to use with the M30 series.

Software

How to upgrade the firmware of the M30 series?
1. Connect the aircraft to a computer and update the firmware of the aircraft, remote controller (RC), and D-RTK 2 Mobile Station by using DJI Assistant 2 For Enterprise.
Use DJI Pilot 2.0 App to update the firmware of the aircraft, remote controller (RC), and BS30 Intelligent Battery Station.
Download the firmware on DJI website(hyperlink), and insert the SD card with the firmware package into the aircraft for offline update.
See the User Manual for more information.

Does the M30 series support dual control?
Supported.

Which apps are supported by the M30 series?
DJI Pilot 2.0 (For Android) and other software developed by using MSDK.

Other

Can the M30 series be used in different regions?
The M30 series includes two versions: the Chinese version and the International version. Please check with the local aftersales service center and the dealers about the availablity of the product.

Will DJI launch an official M30 series backpack?
There is no plan to launch an official backpack.
