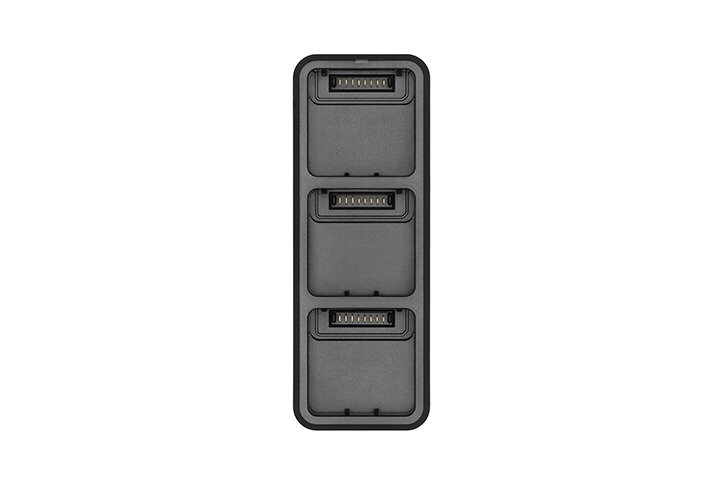

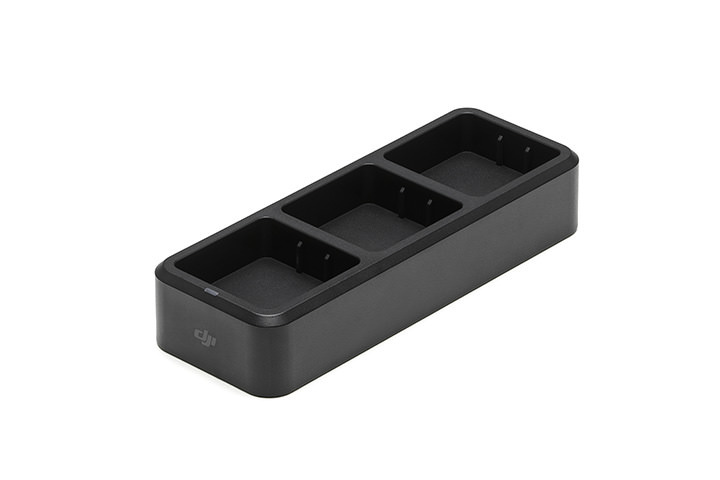

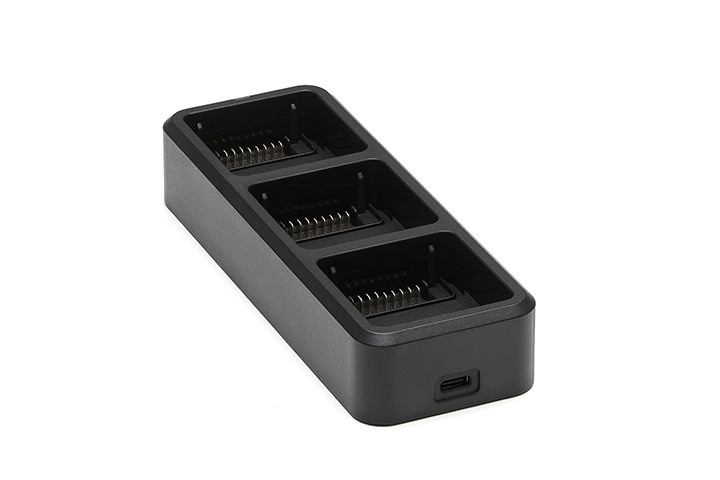

DJI Mavic 3 Series Battery Charging Hub (100W)

When connected to a 100W portable charger or car charger, DJI Mavic 3 Battery Charging Hub (100W) can charge up to three batteries in sequence.

Features

When connected to a 100W portable charger or car charger, the DJI Mavic 3 Battery Charging Hub (100W) can expand the charging port number to three.

It charges batteries in sequence from high to low power level, which greatly enhances charging efficiency.

Highlights

When connected to a 100W portable charger or car charger, DJI Mavic 3 Battery Charging Hub (100W) can charge up to three batteries in sequence.

Tips

1. The charging hub is for expanding the charging interfaces only. It is recommended to use a DJI USB-C Power Adapter (100W) to provide power supply.

2. The charging hub is only compatible with BWX260-5000-15.4 Intelligent Flight Batteries. DO NOT attempt to use the charging hub with other battery models.

3. Place the charging hub on a flat and stable surface when in use. Make sure the device is properly insulated to prevent fire hazards.

4. DO NOT attempt to touch the metal terminals on the battery case.

5. Clean the metal terminals on the battery case with a clean, dry cloth if there is any noticeable buildup.

Compatibility

DJI Mavic 3 Intelligent Flight Battery
DJI 100W USB-C Power Adapter
DJI 65W Portable Charger
DJI 65W Car Charger

Product Specifications

DJI Mavic 3 Battery Charging Hub (100W):
Model: CHX265-100
Dimensions: 150×55×28 mm (L×W×H)
Weight: 116 g
Operating Temperature: 5° to 40° C (41° to 104° F)
Input: 5-20 V, max 5 A
Compatible Power Adapter: DJI USB-C Power Adapter (100W)
Charging Time: Approx. 1 h 10 mins (single battery)*

* Tested using the DJI USB-C Power Adapter (100W).

In the box

DJI Mavic 3 Battery Charging Hub (100W) × 1
