Specifications Lucid Cleaning Drone

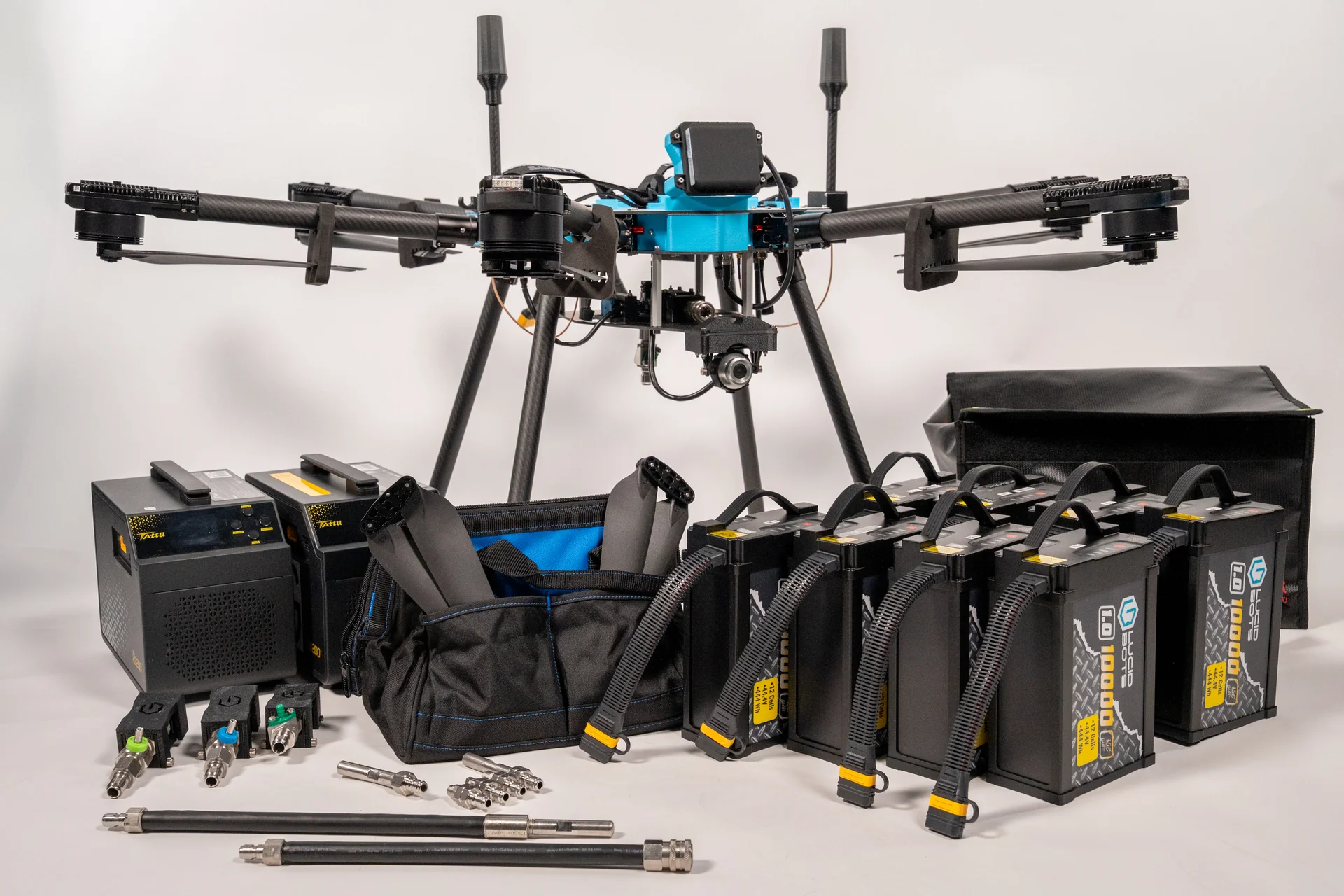

Product Model Lucid Sherpa Cleaning Drone
Airframe Hexacopter
Max Diagonal Wheelbase 53″
Dimensions Arms unfolded: 53″x53″x24″
Arms folded: 24″x24″x24″
Airframe hardware 316 Stainless, Aluminum
Anti-Collision Lights 6x LED
Propulsion System
Motors 6
Stator Size 70mm
KV 180kv
Max Thrust 12kg/rotor
Max Power 3500W/rotor
Weight 720g
Waterproof Rating Equivalent to IPX5
Max Working Current 80A (Continuous) Max Working Voltage 52.2V Foldable Propellers Diameter x Pitch 23×8.8in Weight (Single propeller) 36g
Spraying System
Inlet Connection Material 304 Stainless
Inlet Connection Type 3/4″ Male Cam and Groove Fitting
Max Rated Pressure 4500psi
Plumbing Material 304 Stainless
Nozzle Tip Type Assassin 0 degree #50
Nozzle Tip Flow Rate 6.5 – 7.5 gpm

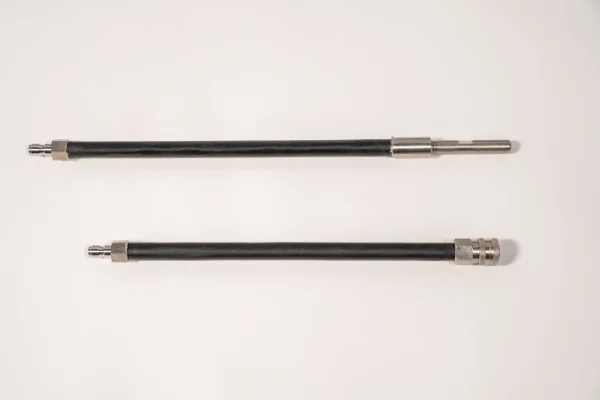

Max Nozzle Assembly Length 18″
Collision Prevention System
Type RADAR
Model USD1
Obstacle Sensing Range
Obstacle sensing range: 0.5-50m
Field Of View 43×30 IP Rating IP67
FPV Camera
FOV 120 degree
Resolution 1920×1200
Resolution 1080p
Video Transmission Digital
Flight Parameters
Flight Controller Operating Frequency 2.400-2.483GHZ
Total Weight (Excluding battery) 21 lbs

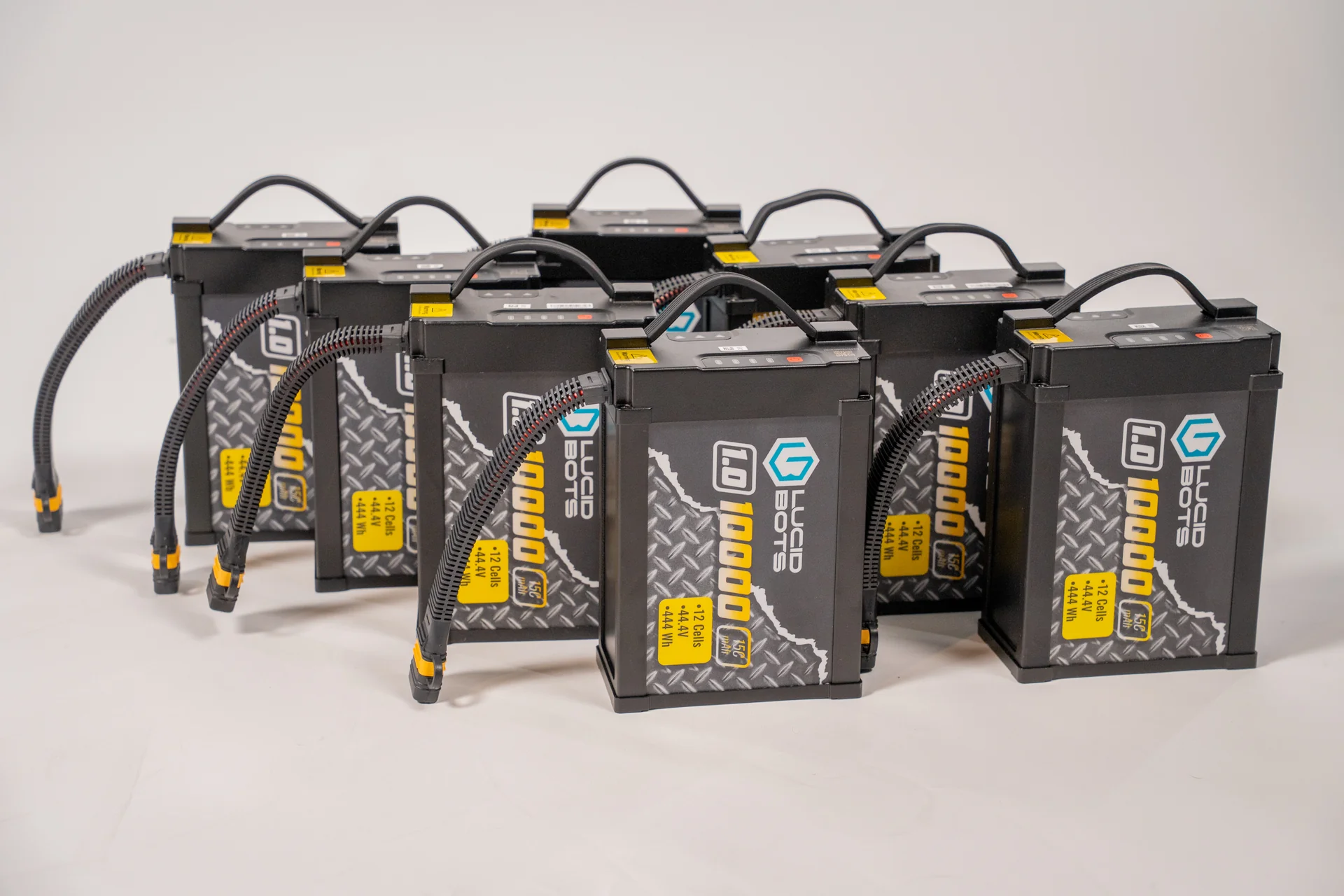

Battery Gens Tattu 10000 mah 12s (2x)
Max Operating Speed 10 mph
Max Wind Resistance 18 mph
Max Service Ceiling Above Sea Level 2000 m
Recommended Operating 0 to 40 degrees Celcius
Transmitter
Model SIYI MK15
Screen 5.5inch
Screen Type LCD
Battery Life 8h
Built-in Battery 12000mah
Max Transmission Distance 15KM
Operating System Android
Charging Method USB-C

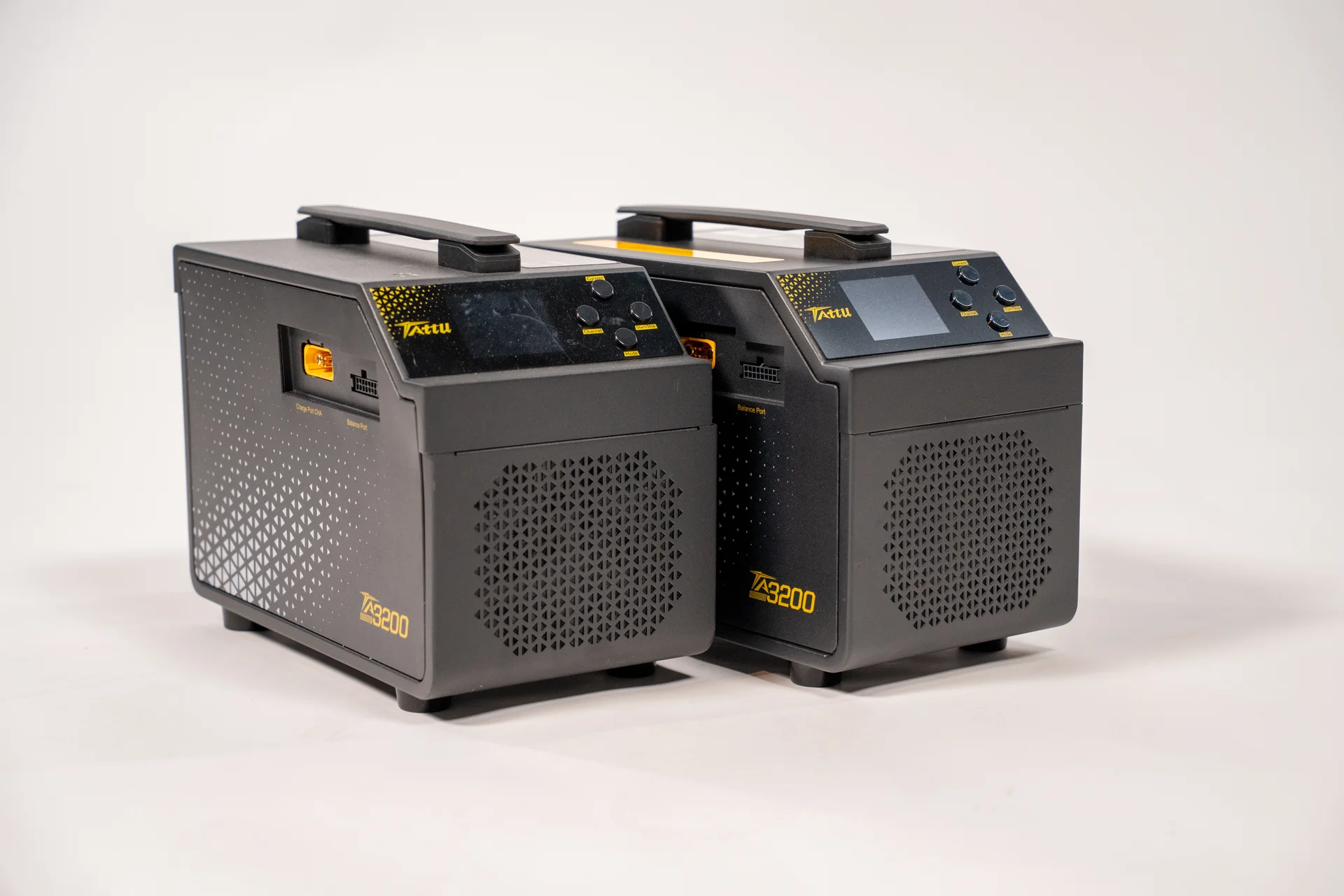

Battery Charger
Model TAA1200
Input Voltage 110-120V
Output Voltage and Current 4~25.2V, 0~38A
Operating Temperature 5~+40 degrees celsius
